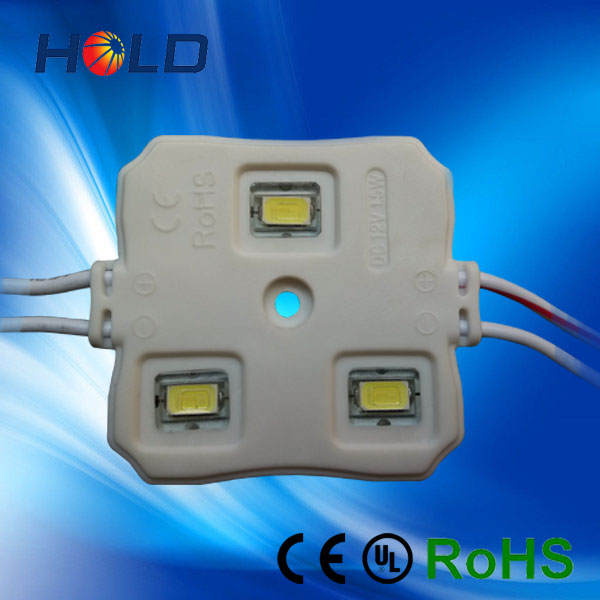

MD02F-56 5630 LED module

Injection Waterproof 5630 smd LED Module

Specification:

Feature:

1. Low wattage, energy efficient and major reduction in power costs
2. Virtually no maintenance
3. Low heat, high brightness, and works well under harsh conditions
4. Including 3m adhesive tape for convenient mounting
5. Full range of colors: red, yellow, blue, green, and white
6. Input voltage: 12V DC, professionally designed to be fully waterproof
7. IP 67 protection degree can be normally operated even in cloudy, rainy and snowy weather
8. Solid-state, high shock or vibration resistant
9. No RF interference
10. Long life 50,000hours+ (5years+), white LED, 50,000hours

Operation Instructions:
The module is 20pcs/string, 0.4A current per string ,user can put several strings in parallel connection , each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of main power supply should not less than 2.5mm2
The module number of each string is customizable or a single use.
Keep it in a well-ventilated environment, good for heat dissipation.
When connecting, red wire connect to power“+”, black wire connect to power“-”.Don’t reverse.
Charged work is prohibited
Suggested to use brand switching power supply with safety certificate.(with short circuit, over voltage, current protection function)

uality Control: All products will be tested and keep lighting for 24 hours to test its quality reliability twice, and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Order infomation
MOQ: 100pcs
Trade term: EXW / FOB Shenzhen
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order after the payment.
Warranty:3years.
Warranty term:
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.
Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , orWestern Unionfor small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port:Shenzhen,China
5. Discounts : We offer discount for big quantity .
Delivery detail: We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
