Introduction|
LED Type |

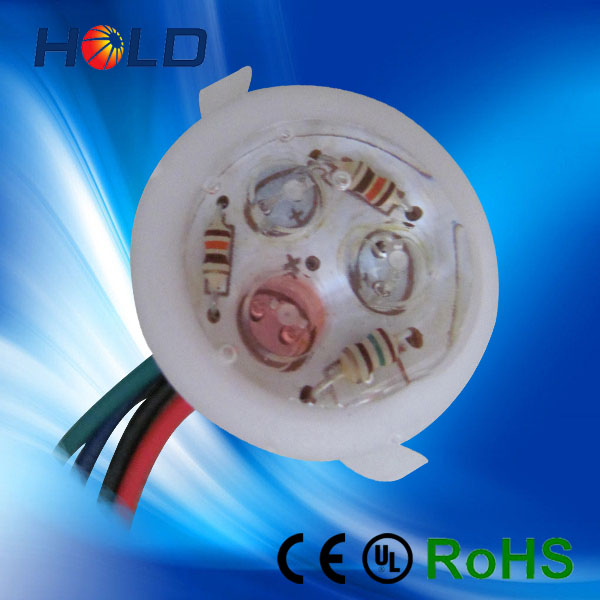

Straw Hat LED |
| LED Q'TY | 3pcs |
|
Working Voltage |
DC5V |
|
Working Current |
60mA |
|
Power |
0.3W |
|
View Angle |
120dgree |
|
Waterproof Level |
IP66 |
|
Emit Color |
RGB |
|
Product Size |
∮20*13mm |
|
Packing |
20pcs/String |
Apllication of 5v led lamp:
channel letter backlighting
spurts draws light
advertisement sign light
indoor and outdoor illumination
architectural decorative lighting
Operation Instructions:
20pcs of each string, User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 1.5mm².
Keep it in a well-ventilated environment, which good for heat dissipation.
RGB controller connects power supply at least.white wire connects "+",red wire connects "R",green wire connects "G",blue wire connects "B",Do not reversal!
Banned charged work.
Features:
The led lamp diameter is 20mm, punching 20mm hole.
It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 6-10cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
